BIM Paradise
All-in-One Revit Template
All-in-One Revit Template
Couldn't load pickup availability
What you will get:
1. Revit Template File (Revit 2019 or later) Metric & Imperial**

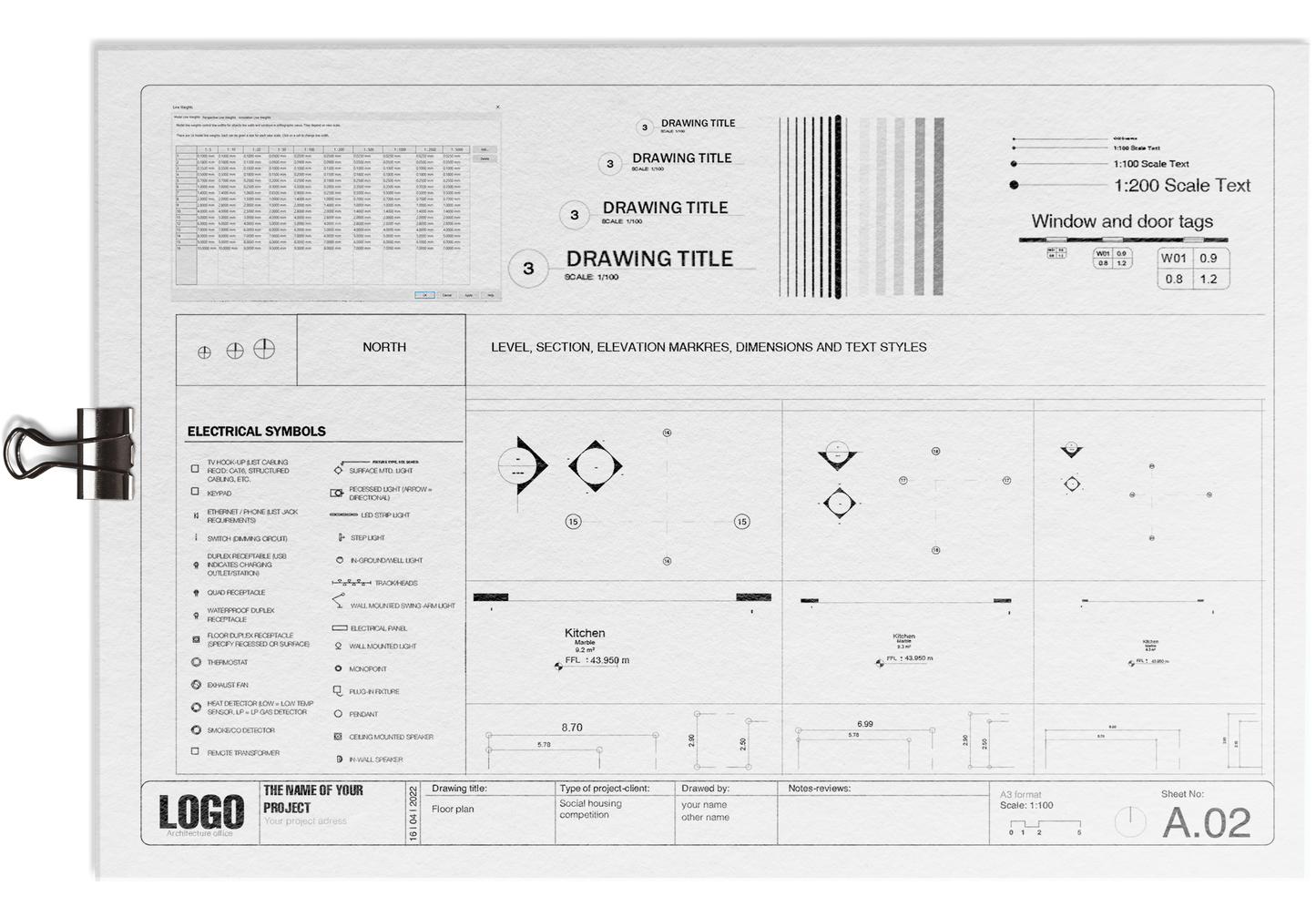

- This also includes a thorough general notes sheet with project info, symbols legend, abbreviations, drawing lists, and all in 4 different scales and more.
- Dimensions styles in 5 different scales in horizontal style and vertical.
- Cut and elevation markers in 4 different scale styles Automatic Zone markers tags with the area and finishes types in 4 different scale sizes.
- Level, section, elevation markers, and north points for all scale sizes Dynamic scale bars for the layout sheets.
- Dynamic norths for the layout sheets.
- Text annotation styles for all scale sizes. (Metric or Imperial)
- Sample project: small sample floor plan, lines layout.
- Electrical Project template: Small sample floor plan, model components, styling, line types and notes, 30 electrical + lighting components: outlets, recessed, surface lights, fans, smoke detectors, electrical panels + more.
- Electrical symbols legend, general notes, and ready-to-use Lighting Fixture schedule. Electrical plan and RCP view template.
2. Color table for all scales (.ctb):
- With preset pen settings, widths, and colors according to the layers ready for installation and printing. Keep all your plans clean and straightforward and always with the same minimalist style.
3. Layout Sheets ready to modify and print:
- Predesigned, minimalist title block families include three of each of the most common metric sizes. Plus, matching cover sheets in four sizes. Simply add your logo + branding and these simple, clean layouts are ready for plotting.
4. Imperial titles blocks (landscape format):
- Arch D (36" x 24") Arch D Cover Sheet Arch C (24" x 18") Tabloid (17" x 11")
5. Metric title blocks (landscape format):
- A1 (841mm x 594 mm) A1 Cover Sheet A2 (594mm x 420mm) A3 (420mm x 297mm)
6. Ebook Guide (PDF):
Installation & styling instructions A complete guide that explains how to use your new complete Revit template step by step, with tips and tricks to help stop wasting time!
Shipping
Shipping
Once you have paid, you will receive your template directly in your mailbox as a .zip file. Be careful, think to check your spam.
If after 5 minutes you still haven't received anything, write to us at contact@bimparadise.com and we will be happy to help you.
Scale
Scale
This template is delivered in both metric and imperial scaling system.
Discover how buying a Revit template can save you thousands of dollars?
All-in-One
Imagine starting a new drawing knowing all your favorite families, notations and settings are in one place and ready to use. Using a template file ensures every drawing begins with the correct settings and standards each time, all with one click.
Increase your productivity up to 1.7x
This template enables you as an architect to spend your time on what matters - the design, representation and presentation of your project.
Creating quality drawings made simple
Everything is already pre-configured in our template to allow you to make professional-quality plans. We developed an eBook just for you containing all the steps to take with the template in just a few minutes.
Here's a few functionalities you will get when you buy the template:

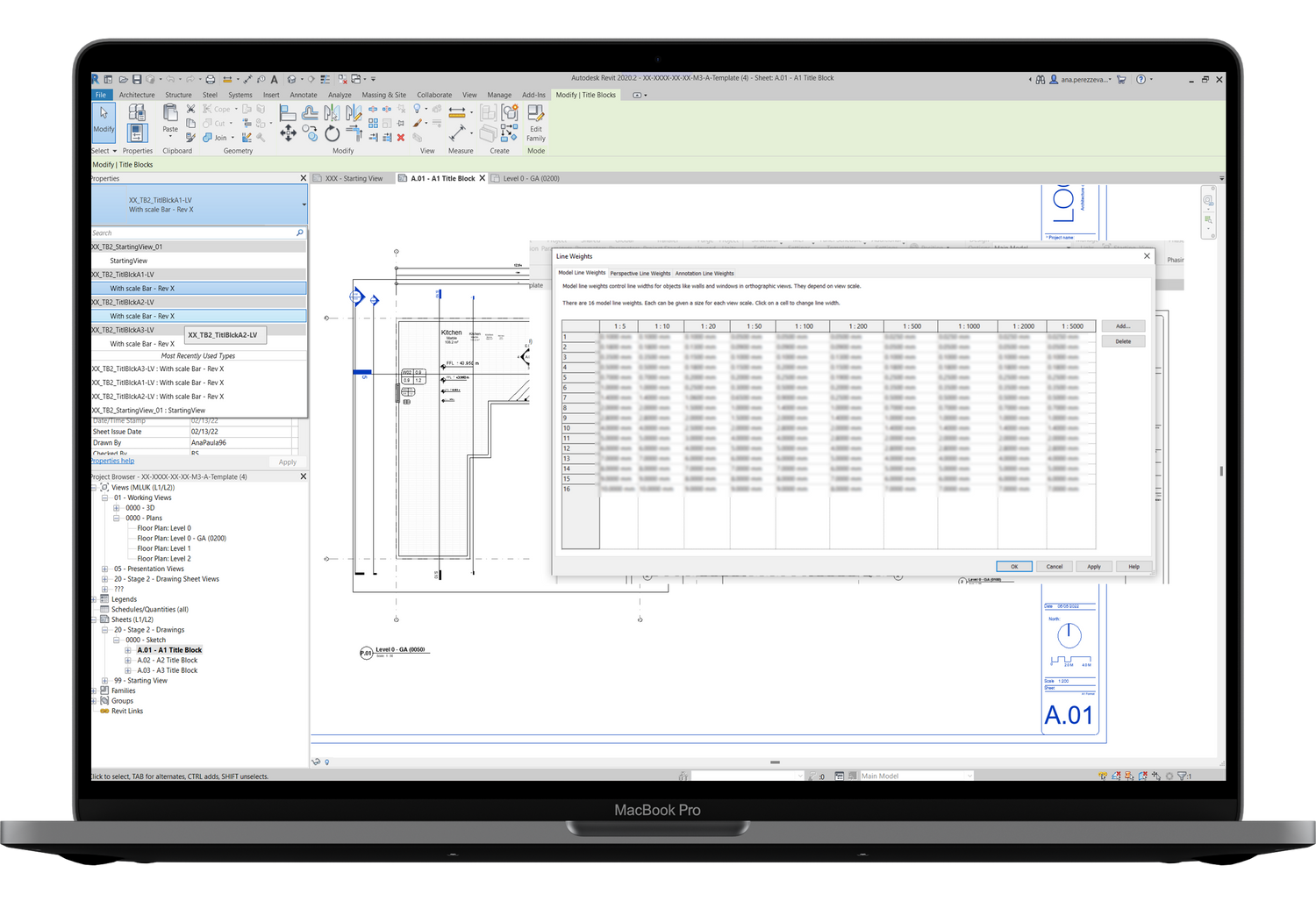

Pre-configured pen styles
-
We have programmed the pens and thicknesses for each scale, so your drawings will keep the same style.
-
Pens ready for any type of drawing, in black & white or color printing! you're going to love our lineweight's pressets!
All the things you need in one file!
-
Electrical blocks, annotations, scales, cuts, elevations, axes, types of dimensions and so much more!
And of course all in different scales!

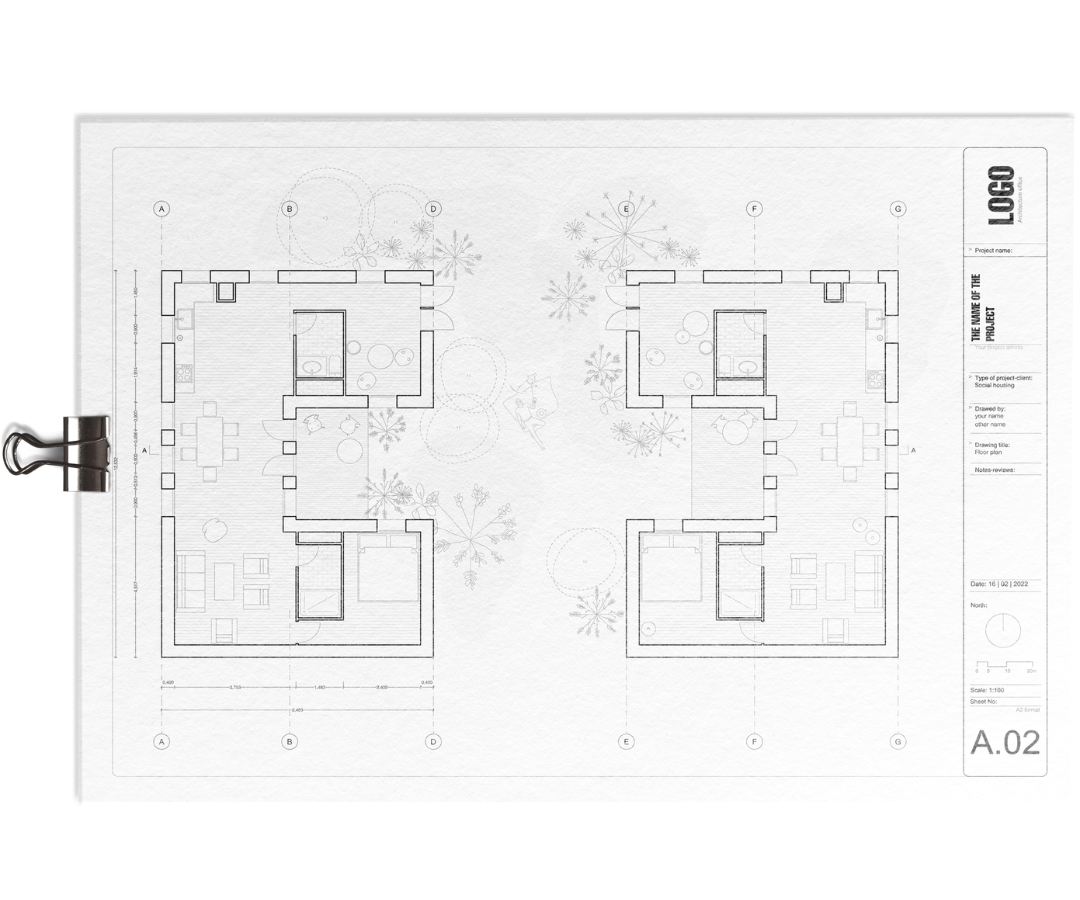

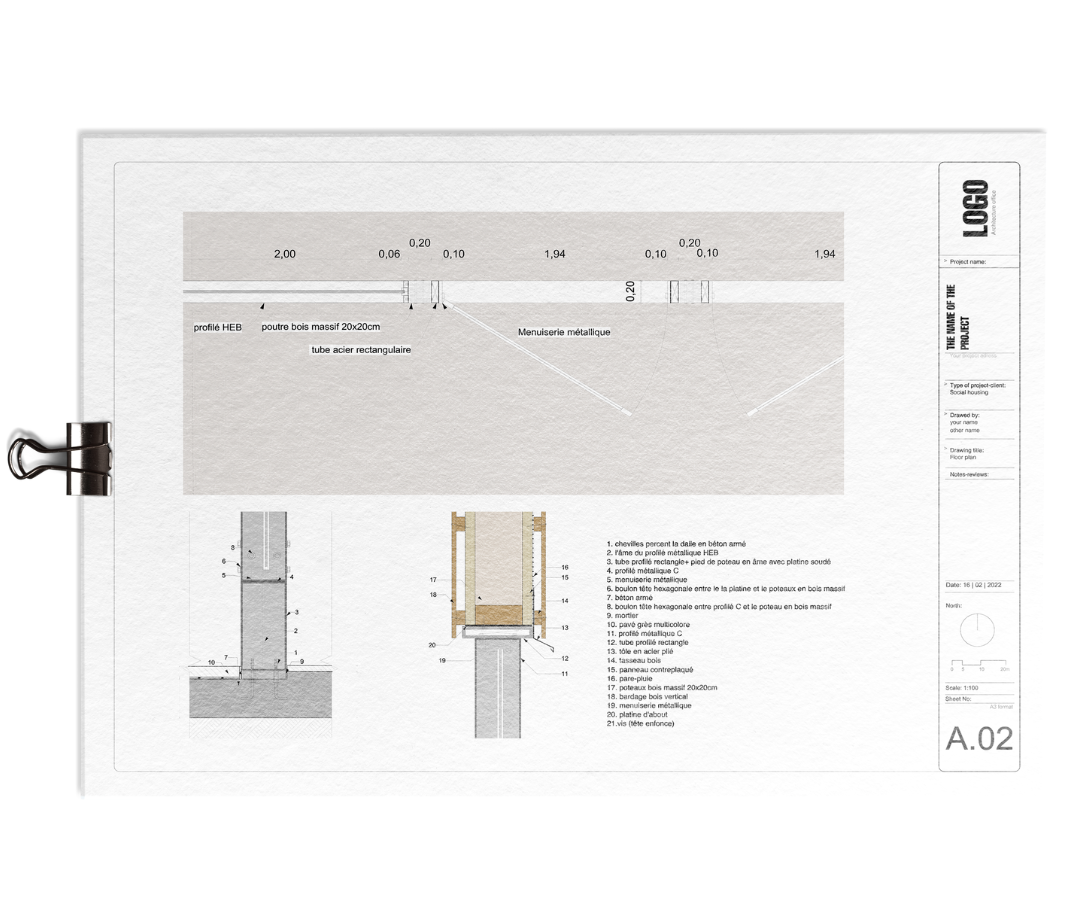

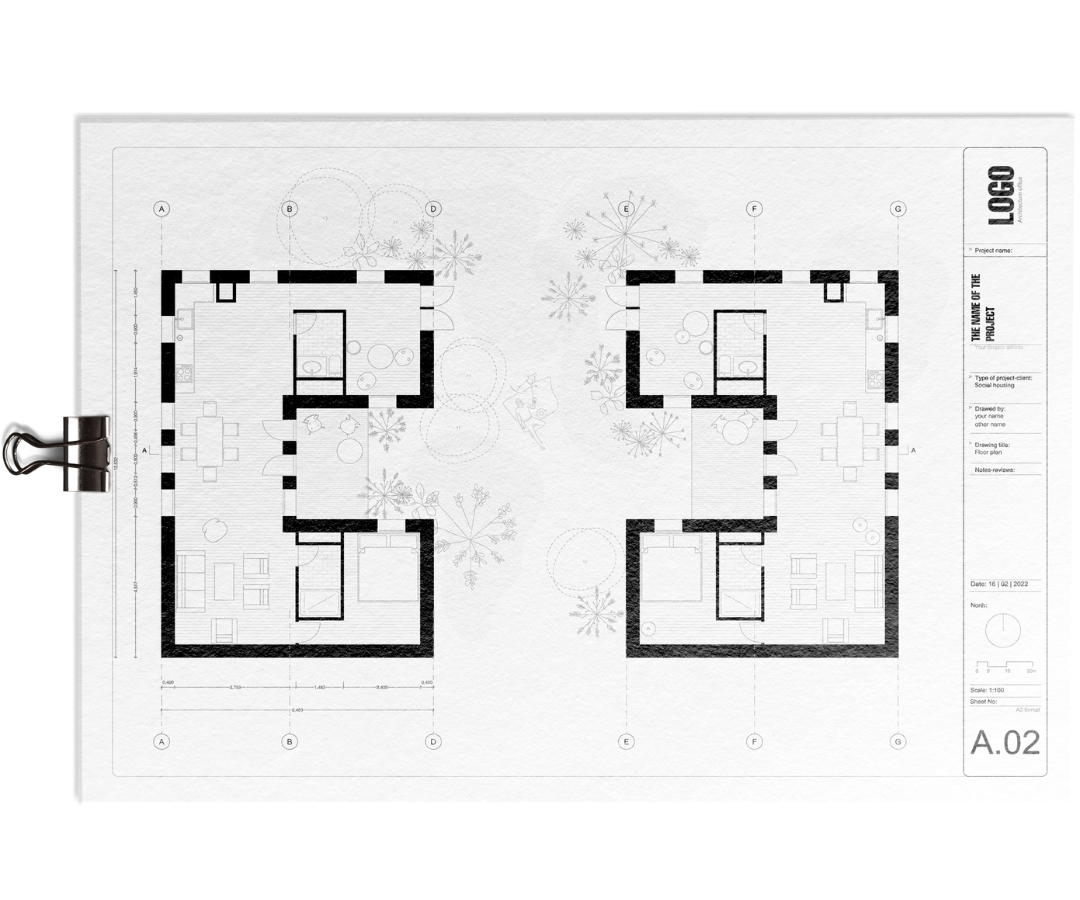

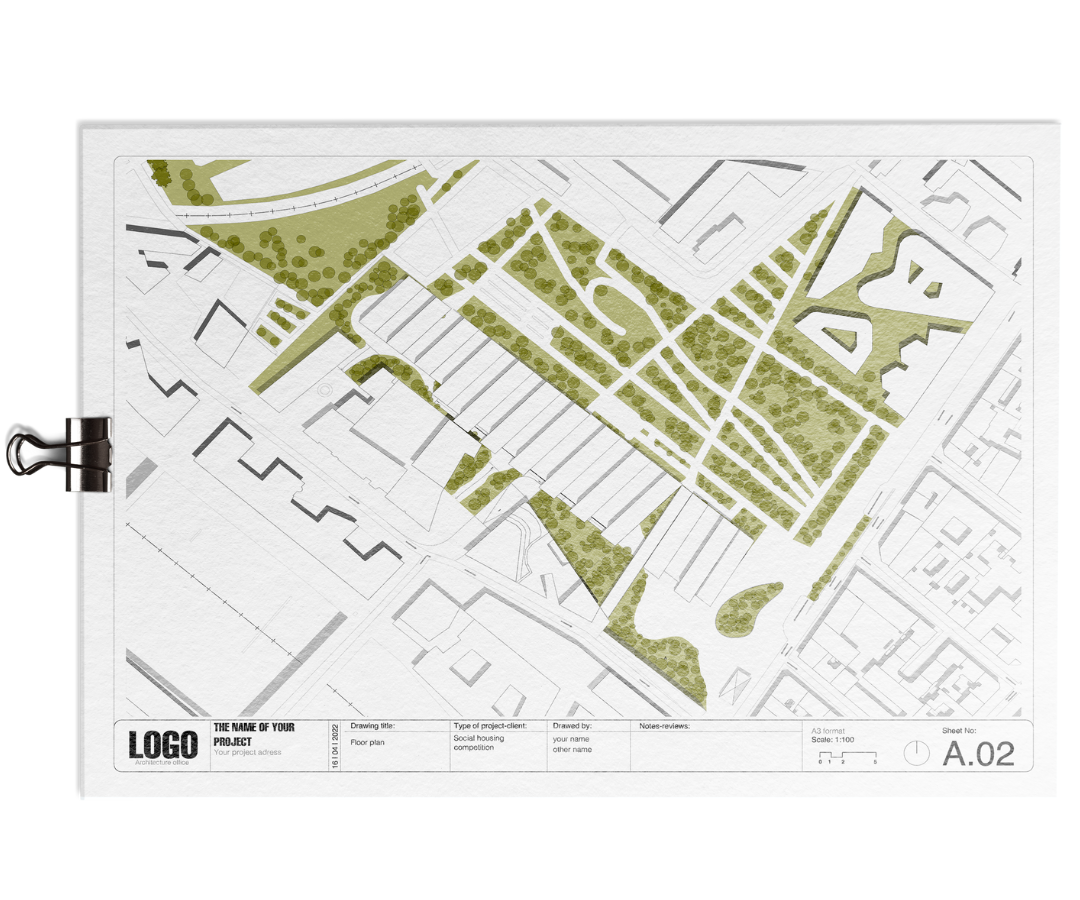

Layout sheets
-
Modern Layout sheets ready to be modified and printed!
Metric: (A3,A2,A1)
Imperial: (Arch B, Arch C, Arch D)
A printable Template Guide
-
A complete guide that explains how to use your new complete Revit template step by step!
