The Ultimate Archicad Template

  •
1 8

BIM Paradise

All-in-One ArchiCad Template

All-in-One ArchiCad Template

$67.00 USD
$99.00 USD $67.00 USD
Sale Sold out
Tax included.

What you will get:

1. ArchiCAD Template File (23 or Later)

  • Metric & Imperial*you can easily change units* This also includes a thorough general notes sheet with project info, symbols legend, abbreviations, drawing lists, and all in 4 different scales and more.
  • Dimensions and text styles in 5 different scales in horizontal style and vertical.

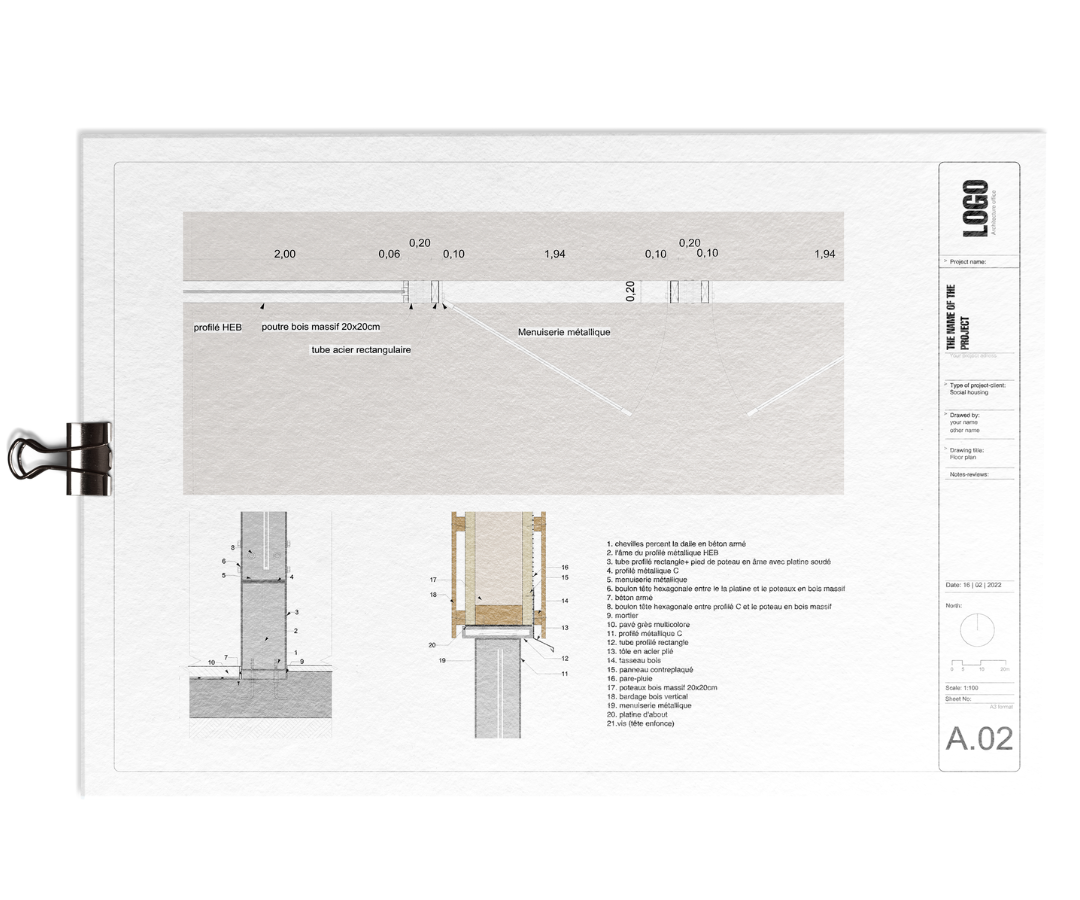

  • Line styles for grass, trees, cuts, diagrams, and details information.
  • Level , section, elevation markers and north points for all scales sizes
  • More than 200 ultra high-quality blocks (Furniture + environment, trees +doors ,windows (dynamic) + people blocks).
  • Dynamic scales bars for the layout sheets.
  • Same style nords for the layout sheets.
  • Text anotation styles  for all scales sizes. (Metric or Imperial)

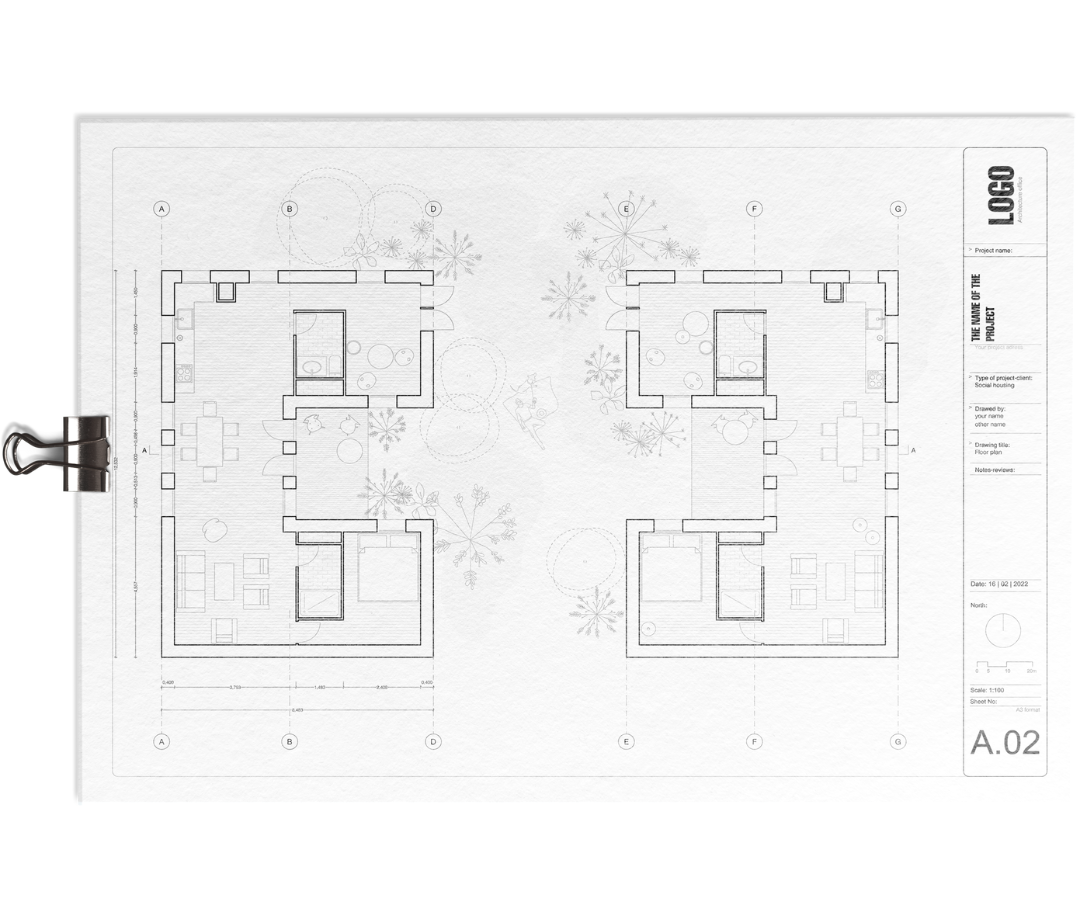

  • Sample project: small sample floor plan,  lines layout.
  • Electrical Project template:  Small sample floor plan, model components (2D), styling, linetypes and notes, 30 electrical + lighting components: outlets, recessed, surface lights, fans, smoke detectors, electrical panels + more. Electrical symbols legend, general notes and ready to use Lighting Fixture schedule. Electrical plan and RCP view template.

2. Color palette styles and thicknesses in all scales and textures for details  :

Preset pen settings, widths and colors according to the layers ready for installation and printing. You only need to change the scale and the thicknesses change automatically, always keeping a minimalist and clear style.

Each line changes according to the drawing element such as structure, walls or floor textures or ambientation.

Keep all your plans clean and simple and always with the same minimalistic style.

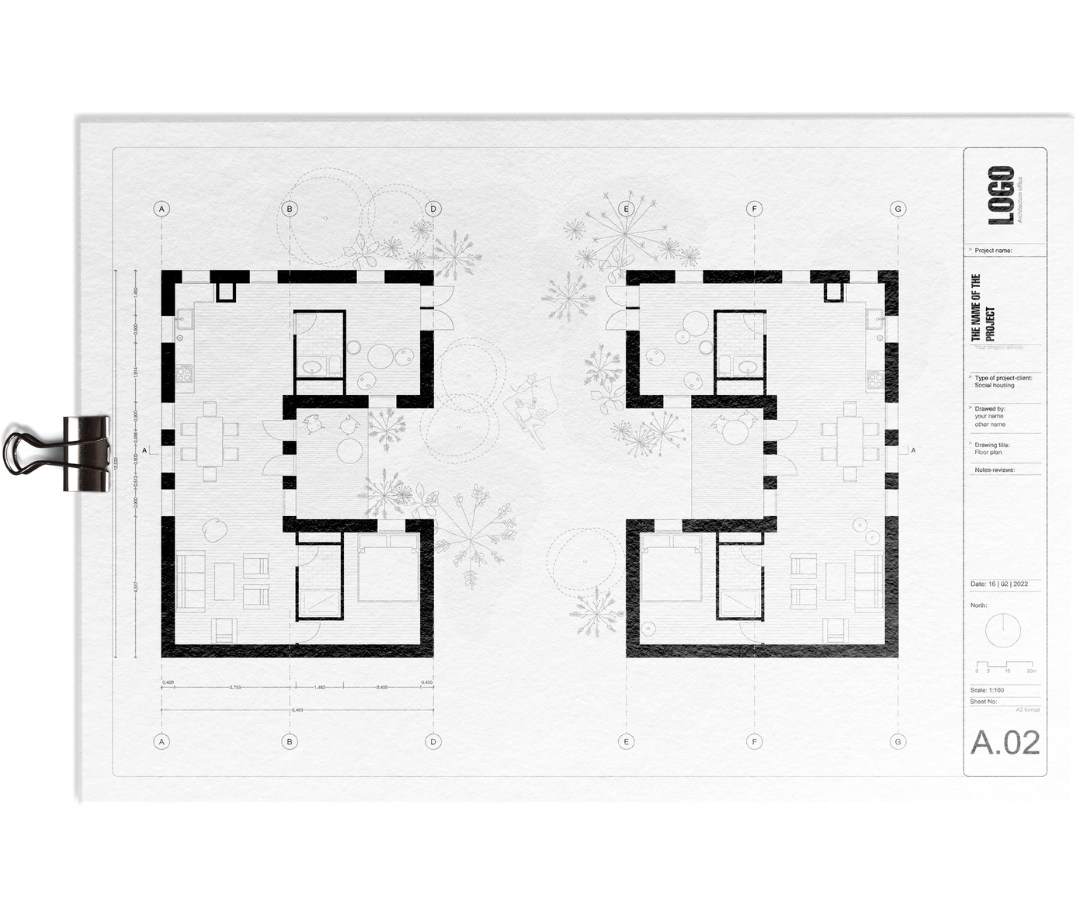

make color and black and white plans:
Each palette has two versions of color type per scale, you only need to choose if you want to make your master plans for example in color with the vegetation in green. all in one click.

3. Dark mode for your workspace:

in one click take care of your eyes with the black and white dark work mode.

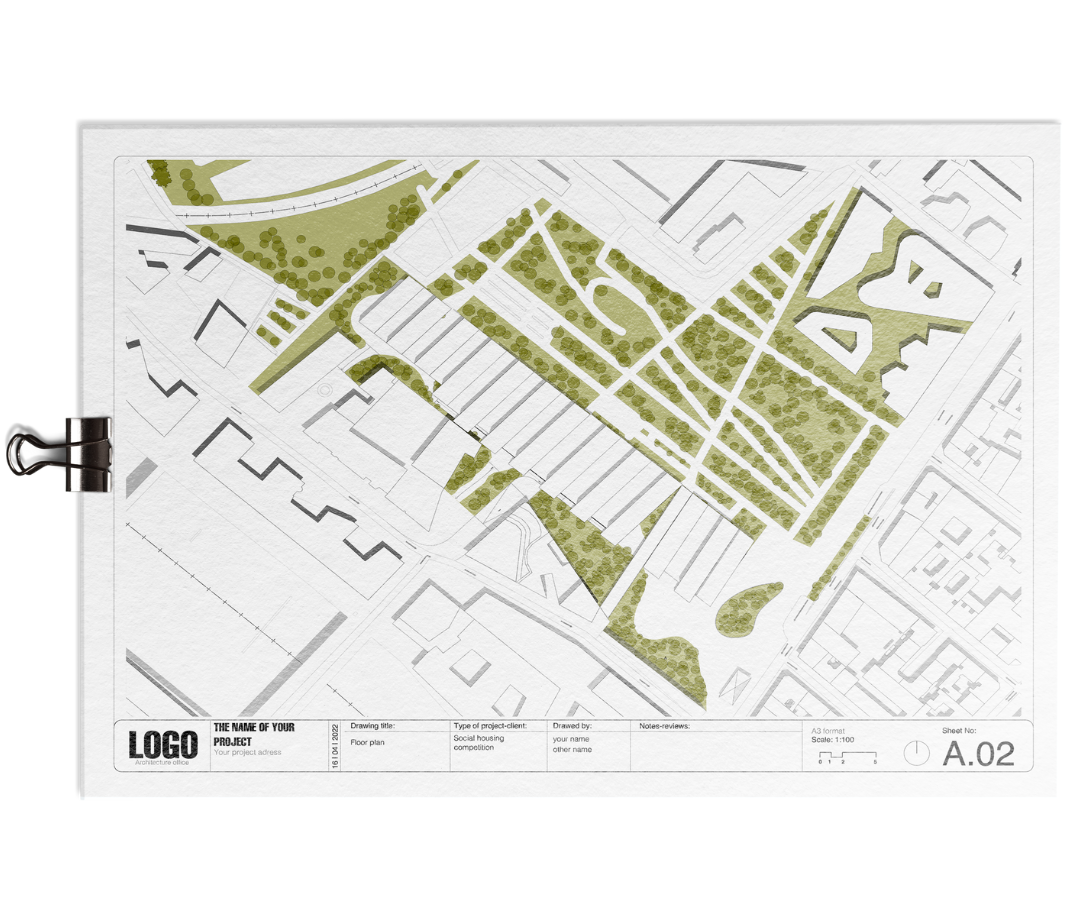

4. Layout Sheets ready to modify and print!

Predesigned, minimalist title block families includes three each of the most common metric sizes. Plus, matching cover sheets in four sizes. Simply add your logo + branding and these simple, clean layouts are ready for plotting.

2. Metric title blocks (landscape format):

  • A1 (841mm x 594 mm)
  • A2 ( 594mm x 420mm)
  • A3 (420mm x 297mm)

5. Ebook Guide (PDF) - Installation & styling instructions

A complete guide that explains how to use your new complete Revit template step by step, with tips and tricks to help you put a stop to the time wasting !

Shipping

Once you have paid, you will receive your template directly in your mailbox as a .zip file. Be careful, think to check your spam.

If after 5 minutes you still haven't received anything, write to us at contact@bimparadise.com and we will be happy to help you.

Scale

This template is delivered in both metric and imperial scaling system.

View full details

Discover how buying an ArchiCad template can save you thousands of dollars?

All-in-One

Imagine starting a new drawing knowing all your favorite families, notations and settings are in one place and ready to use. Using a template file ensures every drawing begins with the correct settings and standards each time, all with one click.

Increase your productivity up to 1.7x

This template enables you as an architect to spend your time on what matters - the design, representation and presentation of your project.

Creating quality drawings made simple

Everything is already pre-configured in our template to allow you to make professional-quality plans. We developed an eBook just for you containing all the steps to take with the template in just a few minutes.

Here's a few functionalities you will get when you buy the template:

1. Pre-configured pen styles

  • Pens ready for any type of drawing, in black & white or color printing! You're going to love our color palette!

  • We have programmed the pens and thicknesses for each scale, so your drawings will keep the same style.

1 2

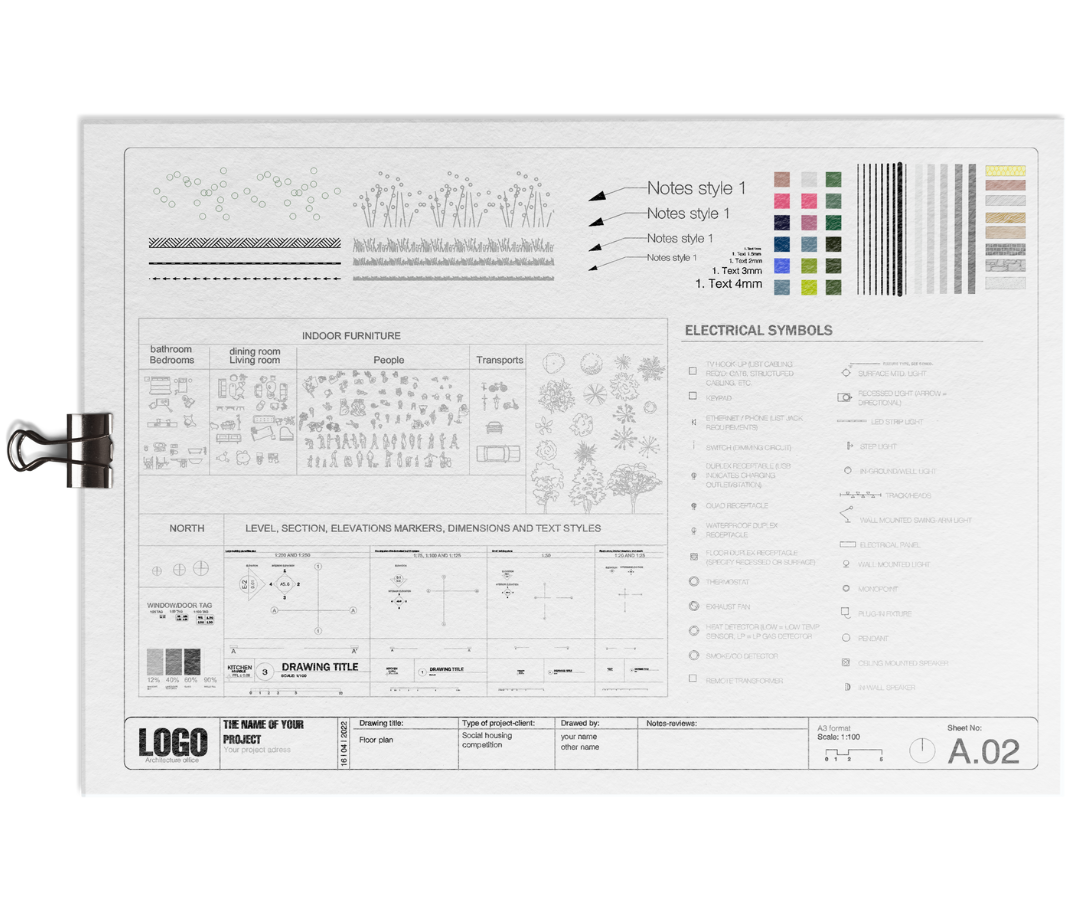

2. Modern Symbols, Blocks, Line-Types, Textures styles and more

  • We have done everything to ensure that each of your drawings always keeps the same minimalist style. You can now keep all your symbols and environment blocks in the same place!

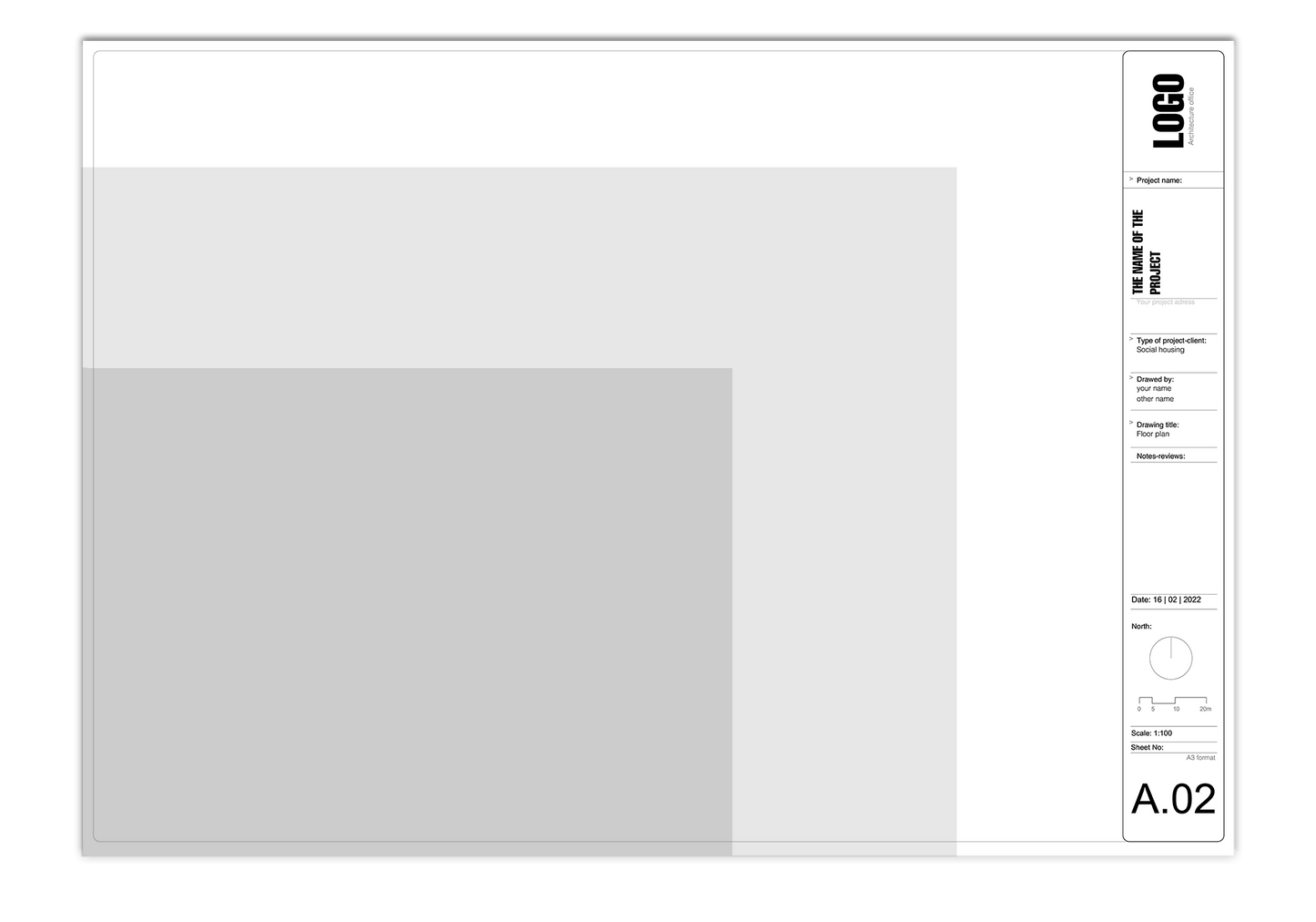

3. Sheets & Layouts

  • Modern Layout sheets ready to be modified and printed!

    Metric: (A3,A2,A1)

    Imperial: (Arch B, Arch C, Arch D)

4. Black and white mode

  • It's important to take care of your visual health! That's why you will have a dark mode to work on your plans without tiring your eyes.

  • You can switch modes in one click!

1 2

5. Printable Guidance Document (PDF)

  • A basic guide that explains how to use your new complete Archicad template step by step!
